Timber Hitch

indeximageindeximageIndexLeft
Scouting Index Scouting Requirements

Alpine Butterfly Loop Back Splice Barrel Hitch Bowline Cleat Hitch (Halyard) Clove Hitch (Half Hitches) Coil Unattached Rope Constrictor (Twisting) Double Fisherman's Double O'hand Stopper Eye Splice Figure 8 Half Hitch Lashing, Square Lashing, Diagonal Lashing, Round Lashing, Shear Lashing, Tripod Marlinspike Hitch Midshipman's Hitch Rolling Hitch Round Turn & Hitches Sailmaker's Whipping Sheet Bend Sheepshank Square (Reef) Timber Hitch Trucker's Hitch Whipping (Common)

Knot Terminology Knot & Rope Safety Rope Properties Contact
Use the Arrow Keys or hover over the Buttons above. View Video

Timber Hitch Tying

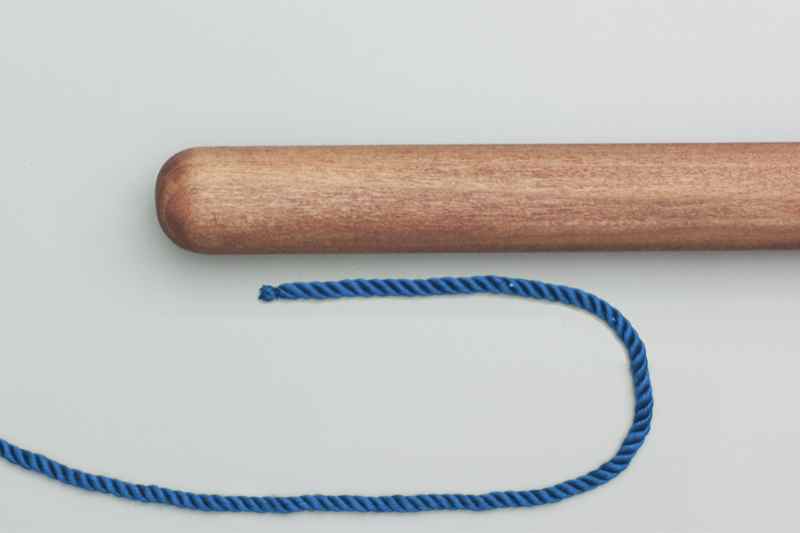

Pass the end of the rope around the pole and then around the standing end. Wrap the end around itself three times and tighten the knot so that the three turns are gripped against the pole.

Timber Hitch Details

Uses: The Timber Hitch is described by (Ashley ABOK #1665, p 290) as much used for handling cargo "... for which it is very convenient, as it practically falls apart when pull ceases." It is also useful when towing a spar or log either afloat or on land. When used for this purpose, the Timber Hitch is often placed near the center of the spar and a separate Half Hitch is dropped over the end of the spar to act as a guide.

Other Applications: The same hitch is known as a Bowyer's Knot because it attaches the end of the bow string on a longbow. It is also used to attach the strings on some stringed instruments including the ukelele and the guitar.

RootBizzle Tie Club

Disclaimer: Any activity that involves ropes is potentially hazardous. Lives may be at risk - possibly your own. Considerable attention and effort have been made to ensure that these descriptions are accurate. However, many critical factors cannot be controlled, including: the choice of materials; the age, size, and condition of ropes; and the accuracy with which these descriptions have been followed. No responsibility is accepted for incidents arising from the use of this material.
