Double Figure 8 Loop ("Bunny Ears") Tying

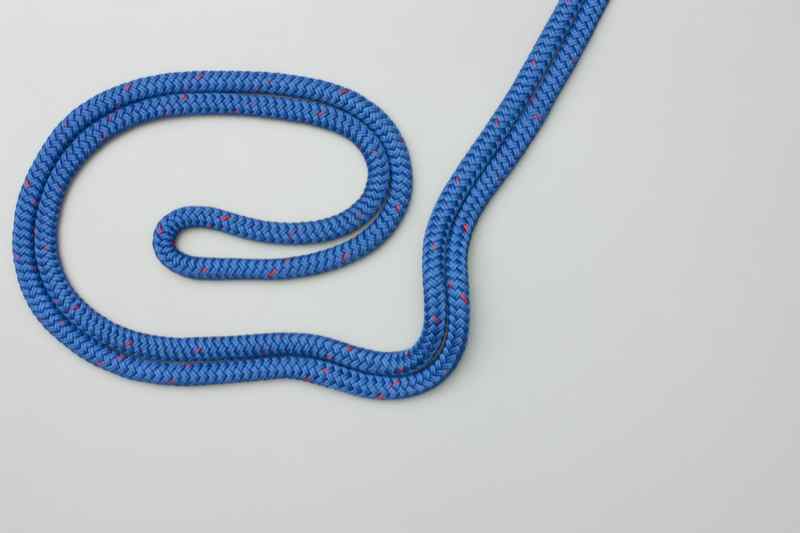

With a long bight in the rope use two double loops to tie a Figure 8 knot. Then pass the end of the original bight under, up, and over the whole knot. Pull it tight to lock the two loops.

Double Figure 8 Loop ("Bunny Ears") Details

Figure 8 Knot
Figure 8 Knot

Figure 8 Knot

Structure: The Double Figure 8 Loop (ABOK # 1085, p 197.) is based on the simple Figure 8 knot.

In the animation the two loops have been made small. In practice they are usually much larger.

Uses: The two loops can be used as an improvised seat. It is also useful for equalizing the load on two anchors. In one top-roping technique, the loops are made very unequal. The much larger one is passed around both anchor points. The center of this loop is then secured with a carabiner to the small loop. During rappelling, this ensures a more even distribution of load between the two anchor points.

Stability: Compared to some of the other double loop knots, e.g., the French Bowline, the Double Loop Figure 8 is stable. It is unlikely to slip so that one loop gets larger at the expense of the other loop.

Disclaimer: Any activity that involves ropes is potentially hazardous. Lives may be at risk - possibly your own. Considerable attention and effort have been made to ensure that these descriptions are accurate. However, many critical factors cannot be controlled, including: the choice of materials; the age, size, and condition of ropes; and the accuracy with which these descriptions have been followed. No responsibility is accepted for incidents arising from the use of this material.
