Figure 8 Follow Through, Animated Knots
Figure 8 Follow Through, Step-by-Step Animation

Figure 8 Follow Through Tying

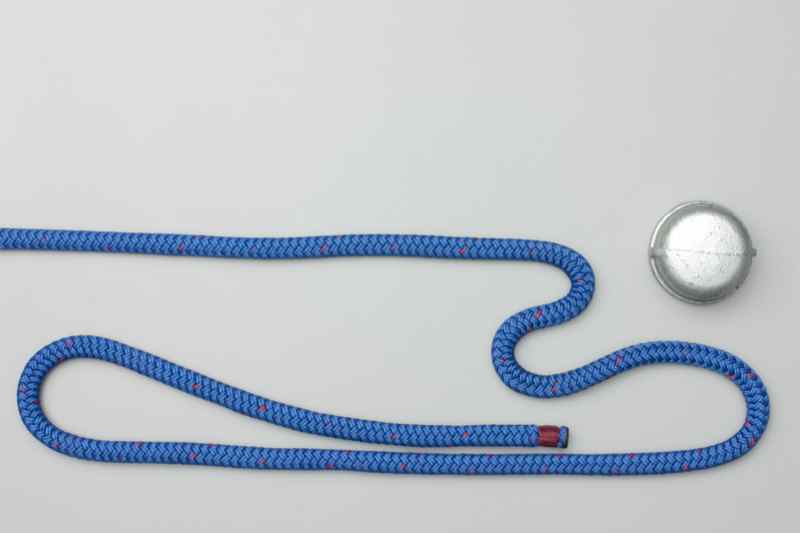

Start by tying a loose Figure 8 knot. Pass the tail around the attachment point. Follow the original Figure 8 around the entire knot in reverse. Exit beside the standing end to complete a two stranded Figure 8 knot.
View Video Below

Figure 8 Follow Through Details

Uses: The Figure 8 Follow Through allows the simple and reliable Figure 8 loop to be tied to a ring, a carabiner, or your own harness. It is reasonably easy to remember, tie, and check. When completed it forms a Figure 8 Loop (ABOK # 1047, p 190).

Pictures of Figure 8 Follow Through Stopped
Figure 8 Follow Through Stopped

Figure 8 Follow Through Stopped

Safety: For the animation, this knot is shown being tied with a short tail end. For security when climbing, the tail end must be longer and, for load bearing, it should be secured around the standing end using a stopper knot.

Final Dressing: To ensure that the knot is tied correctly, it is sensible to tie it in the "Flat" form shown. However, for taking a load, this knot should be carefully dressed so that the two outermost turns are brought in snug against the ropes they enclose. As a result these turns then finish on the other side of the turns they accompany. Dressed this way the knot withstands a load better.

Pictures of Figure 8 Loop Knot
Figure 8 Loop Knot

Figure 8 Loop Knot

The Figure Loop Knot (On a Bight): When the finished knot can be dropped over a post, it is better to use a bight instead of the end, and then tie the knot as you would if you were tying a Figure 8 knot .

Pictures of Figure 8 Directional Loop
Figure 8 Directional Loop

Figure 8 Directional Loop

The Directional Figure 8: When a Figure 8 loop is being created to take a load parallel to the rope, the Directional Figure 8 Knot is an excellent alternative.

Inspection: Ensure that there are two strands beside each other at each part of the knot. Dress the knot as described in the animation. Then, pull it and observe that it tightens neatly.

Disclaimer: Any activity that involves ropes is potentially hazardous. Lives may be at risk - possibly your own. Considerable attention and effort have been made to ensure that these descriptions are accurate. However, many critical factors cannot be controlled, including: the choice of materials; the age, size, and condition of ropes; and the accuracy with which these descriptions have been followed. No responsibility is accepted for incidents arising from the use of this material.
