Cleat Hitch (Halyard)

indeximageindeximageIndexLeft
Boating Index Boating Usage

Alpine Butterfly Bend Alpine Butterfly Loop Anchor Hitch Ashley Stopper Knot Bowline Bowline on a Bight Bowline, Running Buntline Hitch Carrick Bend Chain Splice Cleat Hitch (Deck) Cleat Hitch (Halyard) Clove Hitch (End) Constrictor (Twisting) Double O'hand Stopper EStar Stopper Knot Eye Splice Figure 8 Icicle Hitch (Loop) Halyard Hitch Heaving Line Knot Lighterman's Hitch Midshipman's Hitch Pile Hitch Rat-Tail Stopper Rolling Hitch Round Turn & Hitches Soft Shackle Soft Shackle Edwards Trucker's Hitch Stevedore Stopper Zeppelin Bend

Knot Terminology Knot & Rope Safety Rope Properties Contact
Use the Arrow Keys or hover over the Buttons above. View Video

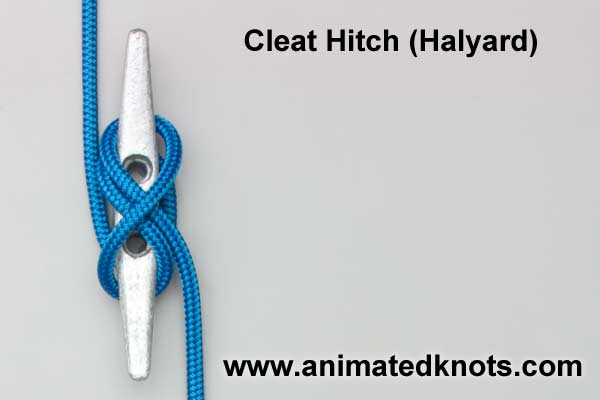

Cleat Hitch for a Halyard Tying

Pass the rope around the bottom horn and on around over the top. Continue down across the middle, and then up across again. Twist a loop in the rope and hook it on the cleat as a Half Hitch.

Cleat Hitch for a Halyard Details

Uses: The Cleat Hitch secures a rope to a cleat. It is deceptively simple and an unwary skipper who invites visitors to secure a halyard may be astonished and dismayed by the unsatisfactory results. See also securing a rope to a Deck Cleat.

First Horn: A mooring rope reaches a deck cleat at an angle and must be led round the most distant horn of the cleat first. By contrast, a halyard usually falls roughly parallel to the cleat and, inevitably, goes around the lower horn first. The direction chosen is often arbitrary.

No Round Turn: As shown in the animation, the rope passes around the first two horns in the same direction. For a halyard there may little harm in continuing in the same direction around the lower horn again. However, for safety, a uniform technique is recommended when Mooring, Towing, and Cleating a sheet: always cross the center after the first two horns.

Tightening a Halyard: A halyard may be subject to a considerable load. On older sailing boats, there may not be a winch. After the rope has passed around the bottom and top horns, one person holds the tail and takes up slack while another swings sideways on the rope above to gain the slack.

History: "Belaying a rope" means securing it or making it fast. Before cleats were common, a rope used to be secured to a vertical pin in a wooden beam called, of course, a "Belaying Pin". Ashley describes several variations including the use of a single hitch by itself (ABOK # 1594, page 284).

Number of Turns: In most of Ashley's illustrations he shows astonishingly few turns. However, he was writing when tarred hemp was the rope of choice. Today's ropes may be stronger, thinner, slippery, and more elastic (nylon rope stretches by more than 5% when loaded to 20% of its rated breaking strain). The animation shows only a single crossover before the crossover with the Half Hitch. An extreme load may transmit tension to the Half Hitch and make release awkward. For this reason, additional crossover turns are commonly used.

Disclaimer: Any activity that involves ropes is potentially hazardous. Lives may be at risk - possibly your own. Considerable attention and effort have been made to ensure that these descriptions are accurate. However, many critical factors cannot be controlled, including: the choice of materials; the age, size, and condition of ropes; and the accuracy with which these descriptions have been followed. No responsibility is accepted for incidents arising from the use of this material.
